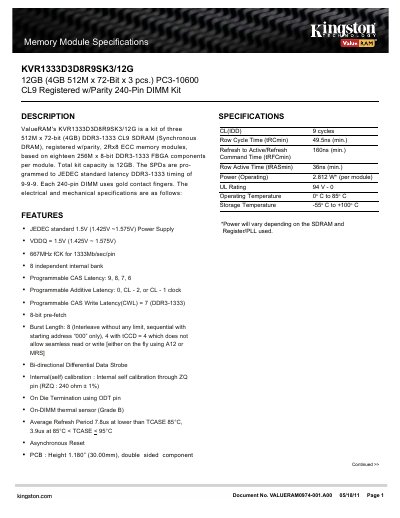

KVR1333D3D8R9SK3/12G is a kit of three 512M x 72-bit (4GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), registered w/parity, 2Rx8 ECC memory modules, based on eighteen 256M x 8-bit DDR3-1333 FBGA components per module. Total kit capacity is 12GB. The SPDs are programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9. Each 240-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
The KVR1333D3D8R9SK3/12G kit consists of three 4 GB DDR3‑1333 CL9 registered ECC memory modules (72‑bit, 240‑pin DIMMs) for a total capacity of 12 GB. It complies with JEDEC standards and includes features such as on‑DIMM thermal sensing and internal self‑calibration.
Key features include a 1.5 V power supply, 667 MHz fCK, programmable CAS latency (9‑6), on‑die termination, and a wide operating temperature range. Detailed electrical, mechanical, and power specifications are provided for system designers.
| Total Capacity | 12 GB (3 × 4 GB) |
|---|---|
| Memory Type | DDR3‑1333 CL9 Registered ECC |
| Operating Voltage | 1.425 V – 1.575 V (JEDEC 1.5 V) |
| CAS Latency | 9, 8, 7, 6 |
| Power Consumption (per module) | 2.812 W |
| Operating Temperature | 0 °C – 85 °C |
The kit provides a total of 12 GB, made up of three 4 GB modules.
It operates at a JEDEC‑standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
The modules support programmable CAS latencies of 9, 8, 7, and 6.
The memory can operate from 0 °C up to 85 °C.
