KVR1066D3E7SK3/12G is a 12GB memory module from ValueRAM. It uses DDR3-1066 CL7 SDRAM (synchronous dynamic random access memory) technology and can reach a latency of 7-7-7 at a clock frequency of 1066MHz. The module supports JEDEC standard 1.5V power and uses a 240-pin DIMM package.
The KVR1066D3E7SK3/12G is a kit of three 4 GB 2Rx8 ECC DDR3‑1066 memory modules (12 GB total) designed for server and workstation use. Each 240‑pin DIMM uses gold contact fingers and includes an on‑DIMM thermal sensor.

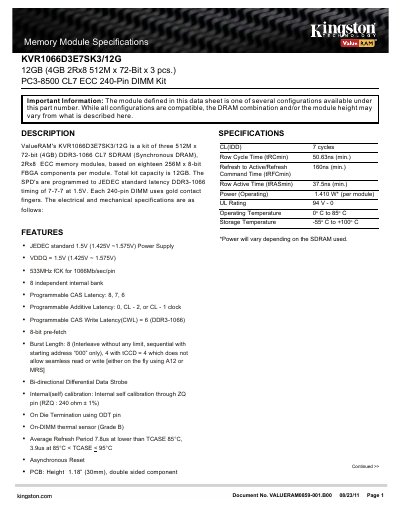

The datasheet lists electrical and mechanical specifications such as 1.5 V supply, programmable CAS latency, power consumption, and operating temperature range, as well as physical dimensions and compliance with JEDEC standards.
| Total Capacity | 12 GB (3 × 4 GB) |
|---|---|
| Memory Speed | DDR3‑1066 (533 MHz) |
| Operating Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| CAS Latency | Programmable 8, 7, 6 (default 7) |
| Power Consumption (Operating) | 1.410 W per module |
| Operating Temperature | 0 °C to 85 °C |
| Module Height | 1.18 in (30 mm) |
The kit provides a total capacity of 12 GB, made up of three 4 GB modules.
It operates at a JEDEC‑standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
The module supports programmable CAS latency values of 8, 7, or 6, with 7 being the typical setting.
The module can operate from 0 °C up to 85 °C.
