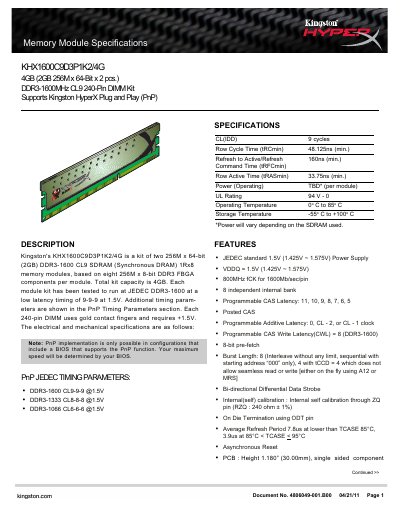

This datasheet provides the specifications of Kingston's KHX1600C9D3P1K2/4G memory module, including memory capacity, timing, voltage, operating temperature, and other information.
The KHX1600C9D3P1K2/4G kit consists of two 256M × 64‑bit DDR3‑1600 CL9 SDRAM modules, providing a total capacity of 4 GB. Each 240‑pin DIMM operates at a standard 1.5 V and features gold contact fingers.
The datasheet lists key electrical parameters such as a CL9 latency, a row cycle time of 48.125 ns, and operating temperatures from 0 °C to 85 °C, along with mechanical dimensions and PnP timing details for various DDR3 speeds. This manual is written in Chinese.
| Total kit capacity | 4 GB |
|---|---|
| Operating voltage | 1.5 V (1.425 V ~ 1.575 V) |
| CAS latency (CL) | 9 cycles |
| Row Cycle Time (tRCmin) | 48.125 ns |
| Operating temperature | 0 °C to 85 °C |
The kit provides a total capacity of 4 GB.
It operates at a JEDEC standard 1.5 V (range 1.425 V ~ 1.575 V).
The CAS latency is CL9, i.e., 9 cycles.
The module can operate from 0 °C up to 85 °C.
