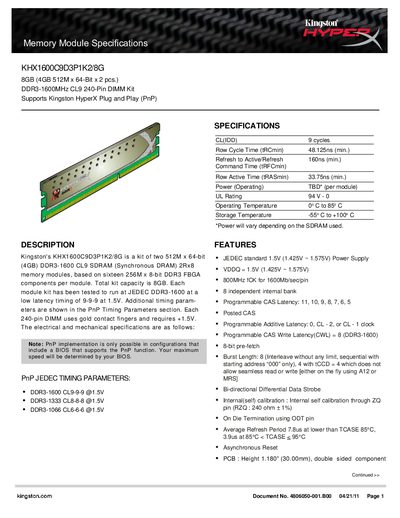

Kingston KHX1600C9D3P1K2/8G DDR3-1600 CL9 Memory Module Datasheet
The KHX1600C9D3P1K2/8G is an 8 GB (two 4 GB) DDR3‑1600 CL9 memory kit composed of two 512M × 64‑bit modules. It complies with JEDEC standards and supports Kingston HyperX Plug and Play (PnP) when the BIOS provides the required support.
Key specifications include a 1.5 V operating voltage (1.425 V ~ 1.575 V), CL9 latency, row cycle time of 48.125 ns, and operating temperature range from 0 °C to 85 °C. The modules use 240‑pin DIMM form factor with gold contacts and include a heat spreader for improved thermal performance.
Kingston KHX1600C9D3P1K2 specifications
| Capacity | 8 GB (2 × 4 GB) |
|---|---|
| Type | DDR3‑1600MHz CL9 240‑Pin DIMM Kit |
| Operating Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| CAS Latency | CL9 |
| Row Cycle Time (tRCmin) | 48.125 ns |
| Row Active Time (tRASmin) | 33.75 ns |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | -55 °C to +100 °C |
Source: Kingston KHX1600C9D3P1K2/8G DDR3-1600 CL9 Memory Module Datasheet
All Kingston KHX1600C9D3P1K2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the total capacity of the Kingston KHX1600C9D3P1K2/8G kit?
The kit provides a total of 8 GB, consisting of two 4 GB modules.
From: Kingston KHX1600C9D3P1K2/8G DDR3-1600 CL9 Memory Module Datasheet
What voltage does the memory module require?
It operates at 1.5 V, with a tolerance of 1.425 V to 1.575 V.
From: Kingston KHX1600C9D3P1K2/8G DDR3-1600 CL9 Memory Module Datasheet
What is the total memory capacity of the KHX1600C9D3P1K2/4G kit?
The kit provides a total capacity of 4 GB.
From: Kingston KHX1600C9D3P1K2/4G DDR3-1600 CL9 4GB Memory Kit Datasheet
What voltage does the memory module require?
It operates at a JEDEC standard 1.5 V (range 1.425 V ~ 1.575 V).
From: Kingston KHX1600C9D3P1K2/4G DDR3-1600 CL9 4GB Memory Kit Datasheet
