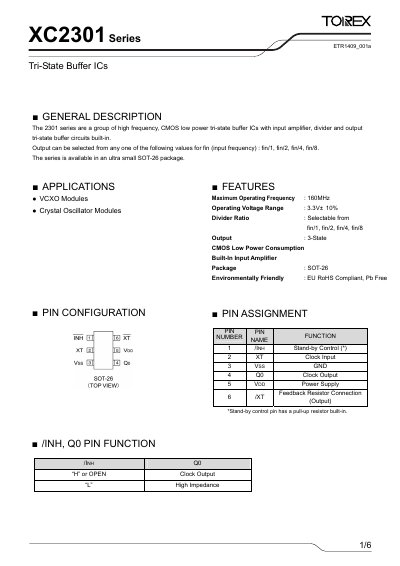

The XC2301 series is a group of high frequency, CMOS low power tri-state buffer ICs with input amplifier, divider and output tri-state buffer circuits built-in. Output can be selected from any one of the following values for fin (input frequency): fin/1, fin/2, fin/4, fin/8. The series is available in an ultra small SOT-26 package.
The XC2301 Series tri‑state buffer ICs integrate an input amplifier, divider and output buffer, supporting selectable division ratios fin/1, fin/2, fin/4 or fin/8. They are designed for VCXO and crystal oscillator modules and are RoHS‑compliant.
The device is supplied in an ultra‑small SOT‑26 package, with a standby control pin, clock input, power supply pins and configurable output pins. Electrical specifications include a 3.3 V supply, 160 MHz maximum operating frequency, and low power consumption. This manual is written in Chinese.
| Supply Voltage VDD | 2.97 V (min) – 3.63 V (max) |
|---|---|
| Input Voltage High (VIH) | 2.4 V (min) |
| Input Voltage Low (VIL) | 0.4 V (max) |
| Output Voltage High (VOH) | 2.2 V (min) – 2.4 V (max) |
| Output Voltage Low (VOL) | 0.3 V (min) – 0.4 V (max) |
| Maximum Operating Frequency | 160 MHz |
| Input Amplitude (VIPP) | 0.5 Vpp (typ) |
| Output Duty Cycle | 45 % – 55 % (typ) |
| Output Rise Time | 3.0 ns (typ) |
| Output Fall Time | 4.5 ns (typ) |
| Supply Current I_DD1 (stand‑by OFF) | 6 mA (typ) at fin/8 |
| Supply Current I_DD2 (stand‑by ON) | 4.5 mA (typ) at fin/8 |
| Package | SOT‑26 |
The XC2301 Series is supplied in an ultra‑small SOT‑26 surface‑mount package.
The device can operate up to 160 MHz.
The output can be selected as fin/1, fin/2, fin/4, or fin/8.
Yes, the series is EU RoHS compliant and free of halogen and antimony.
