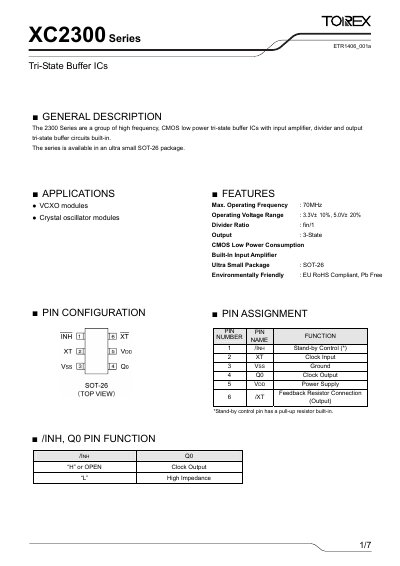

The XC2300 Series is a group of high frequency, CMOS low power tri-state buffer ICs with input amplifier, divider and output tri-state buffer circuits built-in. The series is available in an ultra small SOT-26 package.
The XC2300 series are high‑frequency, low‑power CMOS tri‑state buffer ICs with built‑in input amplifier, divider and output buffer circuits. They are offered in an ultra‑small SOT‑26 package and are RoHS compliant.
The document provides pin assignments, electrical characteristics for both 5.0 V and 3.3 V operation, packaging information, and ordering details. It also includes recommended test circuits and safety notices. This manual is written in Chinese.
| Package | SOT‑26 |
|---|---|
| Maximum Operating Frequency | 70 MHz |
| Supply Voltage Range | 4.0 V – 6.0 V (typical) |
| Input Voltage (High) | 2.4 V |
| Input Voltage (Low) | 0.4 V |
| Output Voltage (High) | 3.9 V – 4.2 V |
| Output Voltage (Low) | 0.3 V – 0.4 V |
| Input Pull‑Up Resistance 1 | 2.0 MΩ – 8.0 MΩ |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -55 °C to +125 °C |
| RoHS Compliance | Yes, EU RoHS compliant |
The XC2300 series is supplied in an ultra‑small SOT‑26 package.
The devices can operate up to 70 MHz.
Yes, the series is EU RoHS compliant and lead‑free.
Typical supply voltage is from 4.0 V to 6.0 V.
