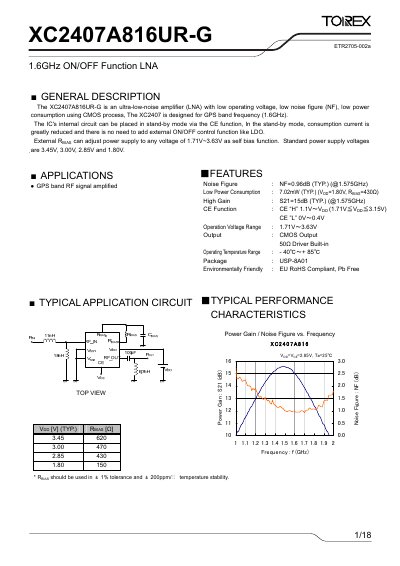

XC2407A816UR-G is a CMOS process ultra-low-noise amplifier (LNA) with low operating voltage, low noise figure (NF), low power consumption. The XC2407 is designed for GPS band frequency (1.6GHz). The IC's internal circuit can be placed in stand-by mode via the CE function. In the stand-by mode, consumption current is greatly reduced and there is no need to add external ON/OFF control function like LDO. External RBIAS can adjust power supply to any voltage of 1.71V~3.63V as self bias function. Standard power supply voltages are 3.45V, 3.00V, 2.85V and 1.80V.
The XC2407A816UR-G LNA is designed for the 1.6 GHz GPS band and features a CMOS process, ultra‑low noise figure (NF = 0.96 dB) and a built‑in CE standby function that reduces power consumption without external ON/OFF control. It operates from 1.71 V to 3.63 V supply and is supplied in a RoHS‑compliant USP‑8A01 package.
The datasheet provides detailed pin assignments, absolute maximum ratings, electrical characteristics, typical performance curves, recommended test circuits, packaging dimensions and marking rules, as well as safety and legal notices for proper use. This manual is written in Chinese.
| Noise Figure | 0.96 dB |
|---|---|
| Power Consumption (typical) | 7.02 mW |
| Gain (S21) | 15 dB |
| Operating Voltage Range | 1.71 V ~ 3.63 V |
| Package | USP‑8A01 |
The CE function enables the IC to enter a standby mode that greatly reduces consumption current, eliminating the need for an external ON/OFF control circuit.
Typical supply voltages are 3.45 V, 3.00 V, 2.85 V and 1.80 V, with the overall operating range from 1.71 V to 3.63 V.
Yes, the ‘‑G’ suffix indicates the device is halogen‑ and antimony‑free and fully RoHS compliant.
