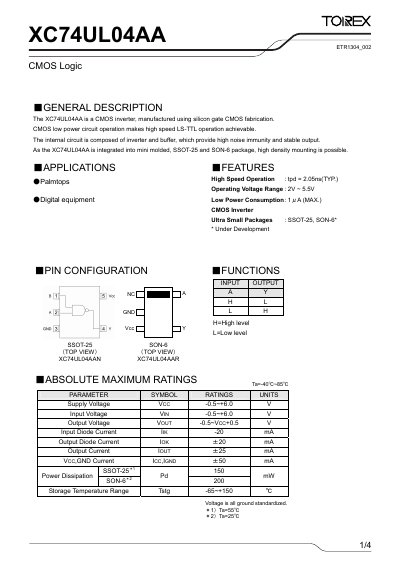

XC74UL04AA is a CMOS inverter with high speed and low power consumption, ideal for palmtop computers and other digital devices
The XC74UL04AA is a CMOS inverter from Torex Semiconductor, designed for low‑power, high‑speed logic applications. It is offered in ultra‑small SSOT‑25 and SON‑6 packages for high‑density mounting.
Key features include a typical propagation delay of 2.05 ns, operating voltage range of 2 V to 5.5 V, and low static power consumption. The device is suitable for palmtops, digital equipment, and other applications requiring fast, reliable logic inversion.
| Supply Voltage (VCC) | -0.5~+6.0 V |
|---|---|
| Input Voltage (VIN) | -0.5~+6.0 V |
| Output Voltage (VOUT) | -0.5~VCC+0.5 V |
| Power Dissipation | 200 mW |
| Operating Temperature Range | -65 °C to +150 °C |
| Typical Propagation Delay (tpd) | 2.05 ns |
| Input Capacitance (CIN) | 5.0 pF |
| Output Current (IOUT) | ±25 mA |
The device operates from 2 V to 5.5 V.
Typical propagation delay is 2.05 ns.
It is offered in SSOT‑25 and SON‑6 ultra‑small packages.
The absolute maximum supply voltage is -0.5 V to +6.0 V.
