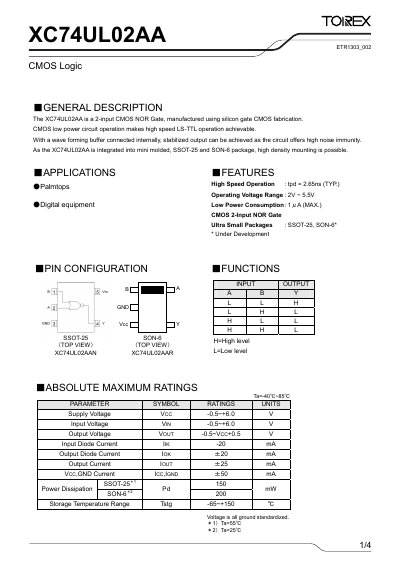

XC74UL02AA is a 2-input CMOS NOR gate manufactured using silicon gate CMOS fabrication. The low power CMOS circuit operation makes high speed LS-TTL operation achievable. With a wave forming buffer connected internally, stabilized output can be achieved as the circuit offers high noise immunity. As the XC74UL02AA is integrated into mini molded, SSOT-25 and SON-6 package, high density mounting is possible.
The XC74UL02AA is a 2‑input CMOS NOR gate fabricated with silicon‑gate CMOS technology. It offers high‑speed operation, low power consumption, and strong noise immunity, making it suitable for portable and digital equipment. The device includes an internal wave‑forming buffer to stabilize the output.
It is offered in ultra‑small SSOT‑25 and SON‑6 packages, enabling high‑density mounting. Recommended operating conditions cover a supply voltage of 2 V to 5.5 V and an ambient temperature range of –40 °C to +85 °C. Typical propagation delay is 2.65 ns, and power dissipation is limited to 200 mW.
| Supply Voltage (VCC) | 2 V ~ 5.5 V |
|---|---|
| Input Voltage (VIN) | 0 V ~ 5.5 V |
| Output Voltage (VOUT) | 0 V ~ VCC |
| Output Current (IOUT) | ±25 mA |
| Propagation Delay (tpd) | 2.65 ns (typ.) |
| Package Types | SSOT‑25, SON‑6 |
It operates with a supply voltage from 2 V to 5.5 V.
The device is offered in SSOT‑25 and SON‑6 surface‑mount packages.
The typical propagation delay is 2.65 ns.
