G3R/G3RD SSR is a printed board SSR with the same shape as G2R power relay. It is directly encapsulated in a printed board type and comes standard with an input display light. AC2,500V high insulation (withstand voltage) and DC output type with high voltage.

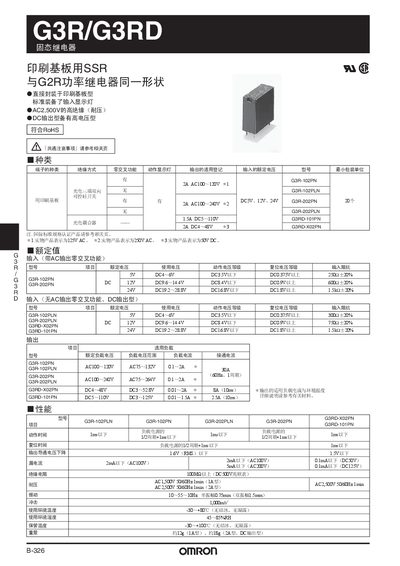

This datasheet describes the Omron G3R and G3RD series solid‑state relays, including their electrical characteristics, terminal types, and recommended usage. It lists the various part numbers, input voltage ranges, and output load capabilities for both AC and DC versions.
Detailed tables give the rated voltage, current, insulation resistance, switching times, and environmental limits such as operating temperature and humidity. Mechanical dimensions and mounting information are also provided for PCB integration. This manual is written in Chinese.
| Maximum AC voltage rating | 2500 V AC |
|---|---|
| Maximum DC voltage rating | 1500 V DC |
| Insulation resistance | >100 MΩ at 500 V DC |
| Operating temperature range | -30 °C to +80 °C |
The relays are rated for up to 2500 V AC.
Insulation resistance is greater than 100 MΩ measured at 500 V DC.
The device can operate from –30 °C up to +80 °C.
