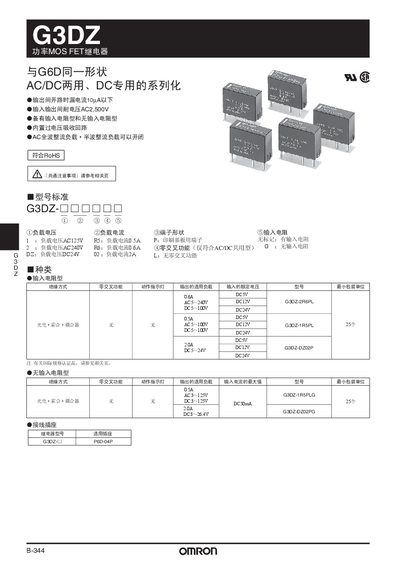

G3DZ series is a power MOS FET relay. This series has the following features: 1. leakage current of 10µA or less when the output is open, 2. AC2,500V withstand voltage between input and output, 3. input resistance type and no input resistance type, 4. internal overvoltage absorption circuit, 5. AC full wave rectifier load and half wave rectifier load can be opened.
The G3DZ series are power MOSFET relays offered by Omron, available in AC/DC universal and DC‑only versions. They feature low leakage current, optional input resistance, and zero‑crossing functions for AC loads. The relays comply with RoHS and are supplied with various terminal options.
The document provides detailed electrical characteristics such as load voltage and current ratings, input and output specifications, as well as mechanical dimensions, mounting instructions, and environmental limits for reliable operation in industrial applications. This manual is written in Chinese.
| Maximum load voltage (AC) | 125 V |
|---|---|
| Maximum load current (AC) | 0.5 A |
| Leakage current (output open) | < 10 µA |
| Recommended input current | 6.25 mA |
| Insulation resistance | > 100 MΩ |
| Operating temperature range | -30 °C to +85 °C |
| Weight (typical) | ≈ 3.1 g |
| Actuation time | < 6 ms |
The leakage current is less than 10 µA.
The recommended input current is 6.25 mA, with a maximum of 50 mA.
The relay can operate from –30 °C to +85 °C.
The insulation resistance is specified as greater than 100 MΩ.
