This is a PDF file that mainly introduces the features and characteristics of the VX-5 series products, including product connection specifications, rocker mounting positions, resistance meter, time, etc.

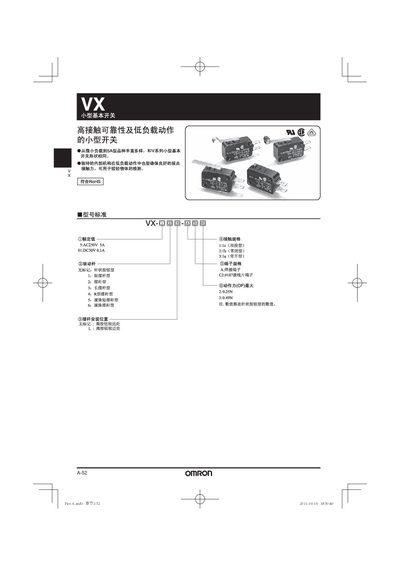

This manual describes the VX series small basic switches, highlighting their high contact reliability and low‑load operation. It lists the various switch types, contact ratings, and mechanical characteristics.
Installation, proper usage, and safety notes are covered, including recommended screw size, tightening torque, and guidelines for low‑load applications. Technical specifications such as rated current, voltage, contact resistance, and operating force are also provided. This manual is written in Chinese.
| Rated voltage | AC 250 V |
|---|---|
| Contact resistance | ≥100 MΩ |
| Mechanical life | 500 cycles/min |
Use a tightening torque of 0.39–0.59 N·m.
The minimum applicable load is 160 mA at DC 5 V.
Mount the switch using M3 screws.
