G9EA-1 DC power relay is a small, compact relay that is suitable for industrial applications. It can switch 400 V, 60 A DC loads (up to 600 A at 300 VDC). The switch and drive parts are filled with gas and are sealed, which allows these small relays to break high-capacity loads. The sealed construction does not require arc space, saves space and helps to ensure safe applications.
The G9EA-1 is a compact DC power relay capable of switching up to 400 V DC with rated currents of 60 A or 100 A. Its sealed, gas‑filled contacts allow safe interruption of high‑capacity loads without arc space, and the design offers unrestricted mounting orientation.

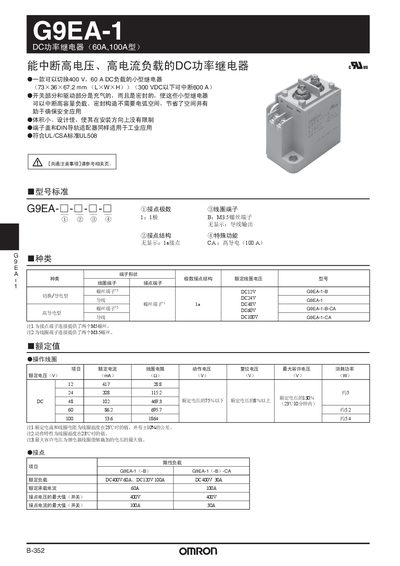

The manual includes electrical specifications such as coil voltages (12 V, 24 V, 48 V DC), contact resistance, switching times, and environmental limits, as well as mechanical data like dimensions, terminal configurations, and durability ratings. Installation instructions cover DIN‑rail adapters, terminal polarity, and mounting tolerances. This manual is written in Chinese.
| Rated Current | 60 A / 100 A |
|---|---|
| Weight | ≈310 g |
The relay is rated for 60 A in the 60 A version and 100 A in the 100 A version.
