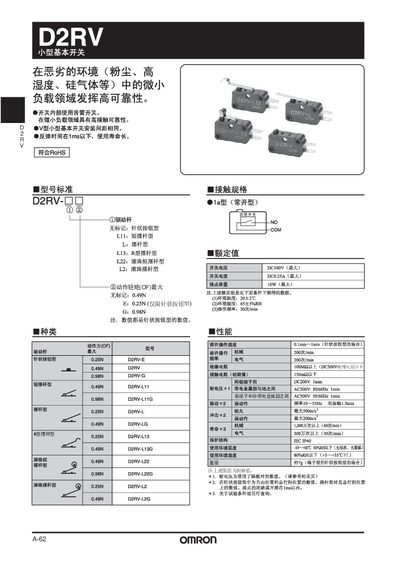

This document introduces the characteristics of the D2RV-L series of switches, including the action button moment, pretravel, maximum overrun, minimum response difference travel, maximum action position, weight, insulation resistance between each terminal and non-charged metal parts, etc.
The D2RV series are compact basic switches designed for high reliability in harsh environments such as dusty, humid, or gas‑filled areas. They feature a tongue‑type internal mechanism and offer low contact resistance and long mechanical life.
The manual details electrical ratings, mechanical characteristics, installation spacing, and safety precautions, including recommended non‑magnetic mounting hardware and guidelines to avoid magnetic interference and impact damage. This manual is written in Chinese.
| Maximum switching voltage | DC 100 V |
|---|---|
| Maximum switching current | DC 0.25 A |
| Contact rating (power) | 10 W max |
The D2RV switch can handle up to DC 100 V.
Use non‑magnetic brass or stainless‑steel screws; iron screws should be avoided.
