G9EB-1-B is a DC power relay produced by Panasonic. It can withstand 250V of rated voltage and carry 25A of current. It is also very small and light.
The G9EB-1 series is a compact DC power relay (25 A, 250 V) with a sealed metal‑resin construction that eliminates the need for ceramic parts. It measures 25 × 60 × 58 mm and weighs about 135 g, making it one of the smallest and lightest relays in its class.

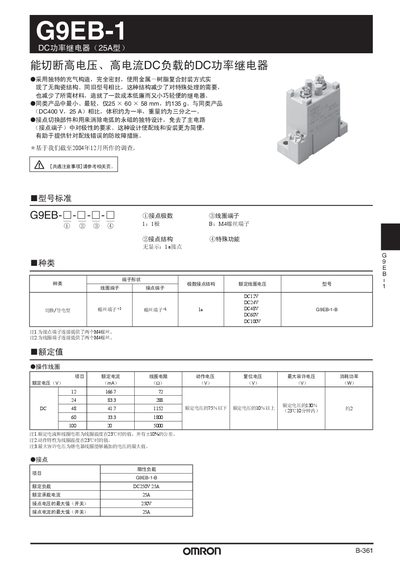

The manual lists electrical performance data such as contact resistance, contact voltage drop, switching times, and mechanical and electrical life. It also details environmental limits, coil voltage options, and terminal configurations for easy installation. This manual is written in Chinese.
| Operate time | ≤30 ms |
|---|---|
| Release time | ≤15 ms |
| Rated load | 25 A at 250 V DC |
| Operating temperature range | -40 °C to +70 °C |
| Weight | ≈135 g |
The relay operates from –40 °C up to +70 °C.
