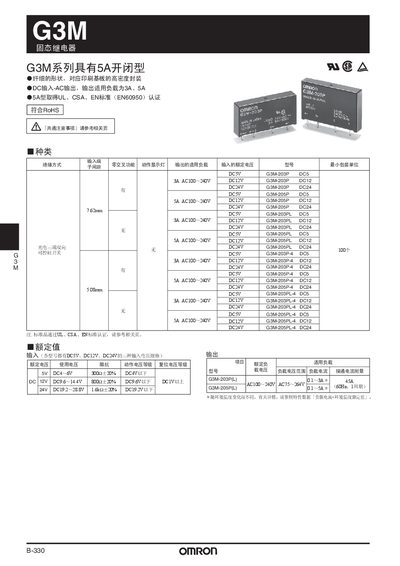

This document describes the features and characteristics of the 3G M B-330 G3M Solid State Relay, including its slim shape, high-density packaging, DC input-AC output, and 3A/5A load capacity.
This manual describes the Omron G3M series solid state relays, including their electrical characteristics, environmental limits, and mechanical dimensions. It also contains common precautions and reference data for proper installation and operation.
The document lists input voltage options, load ratings, isolation resistance, and temperature ranges, and provides terminal layout drawings and dimensions for the various G3M models. This manual is written in Chinese.
| Output type | AC |
|---|---|
| Maximum load current | 3 A or 5 A |
| Output voltage range | AC100 ~ 240 V |
| Isolation resistance | ≥1 MΩ |
| Operating temperature range | -30 °C to +80 °C |
| Storage temperature range | -30 °C to +100 °C |
| Weight | ≈158 g |
| Terminal pitch | 5.08 mm |
Depending on the model, the relay can handle either 3 A or 5 A of load current.
It is rated for operation from –30 °C up to +80 °C.
The isolation resistance is specified as at least 1 MΩ.
