G3RZ power MOS FET relay is an AC/DC dual-use product that can turn on and off 1A loads. The input resistor and nonlinear resistor are built-in, and it can turn on and off AC full-wave rectified load and half-wave rectified load.
The G3RZ series is a power MOS FET relay with the same form factor as the G2R series. It can switch AC 240 V or DC 100 V loads up to 1 A and offers features such as low leakage current and optional zero‑cross detection.

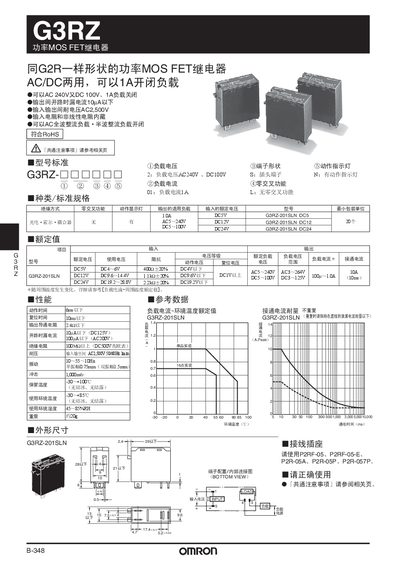

The manual lists electrical and mechanical characteristics, environmental limits, mounting dimensions, and recommended wiring parts. It also includes common precautions and test data for reliable installation and operation. This manual is written in Chinese.
| Maximum Load Voltage | AC 240 V / DC 100 V |
|---|---|
| Maximum Load Current | 1 A |
| Contact Leakage Current (open) | < 10 µA |
| Weight | ≈ 20 g |
| Contact Resistance (ON) | < 0.49 Ω |
| Zero‑Cross Detection | No |
It can handle up to AC 240 V or DC 100 V loads.
The open‑circuit leakage current is less than 10 µA.
No, the relay does not have a zero‑cross function.
