This file is the specification of M3G C B-339 product, which mainly describes the product model, weight, working voltage, action voltage level, reset voltage level, conduction time, on-time, storage temperature and other information

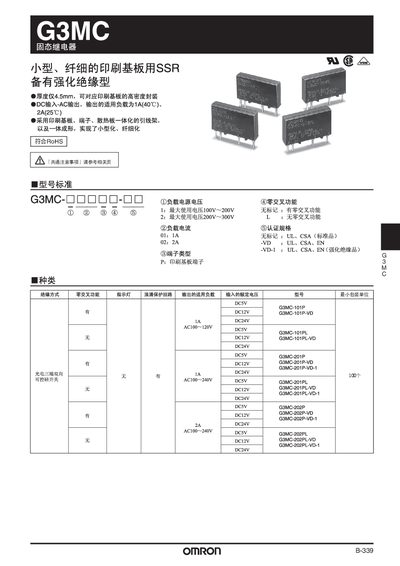

This manual describes the compact, thin‑profile Omron G3MC solid‑state relays designed for printed‑circuit‑board mounting. It covers electrical ratings, performance data, mechanical dimensions, and recommended installation practices for the various G3MC models.
Key topics include input voltage options, load current limits, zero‑cross versus non‑zero‑cross versions, soldering recommendations, and safety precautions such as surge protection and proper wiring separation. This manual is written in Chinese.
| Maximum operating voltage | 100 V‑200 V |
|---|---|
| Maximum load current | 1 A (40 °C) / 2 A (25 °C) |
| Input voltage options | DC 5 V, DC 12 V, DC 24 V |
| Operating temperature range | -30 °C to +80 °C |
| Insulation resistance | ≥1 000 MΩ (DC 500 V) |
Solder the terminals for no more than 10 seconds at 260 °C or 5 seconds at 350 °C.
Use the non‑zero‑cross version of the relay for phase‑control output.
Keep the mounting height deviation under 0.1 mm and ensure adequate airflow when multiple relays are installed together.
Connect a surge‑absorbing varistor across the LOAD terminals for peak voltages above 250 V (G3MC‑102PL) or 450 V (G3MC‑202PL).
