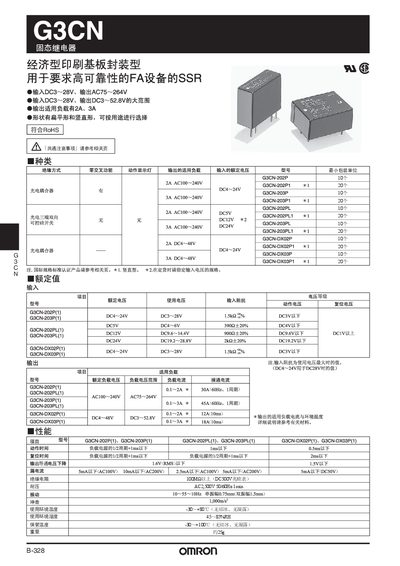

C3G N B-328 solid state relay data, including product features, specifications, and external dimensions.
The G3CN series are compact, printed‑circuit‑board (PCB) solid‑state relays designed for high‑reliability factory automation equipment. They are available in flat and vertical packages and support a wide range of input and output voltages.
Key data include input voltage ranges of DC 3‑28 V, output voltage options of AC 75‑264 V or DC 3‑52.8 V, load currents of 2 A or 3 A depending on the model, and robust environmental limits such as –30 °C to +80 °C operating temperature and isolation resistance above 100 MΩ. This manual is written in Chinese.
| Input voltage range | DC 3‑28 V |
|---|---|
| Output AC voltage range | AC 75‑264 V |
| Output DC voltage range | DC 3‑52.8 V |
| Maximum load current | 2 A (202P) / 3 A (203P) |
| Isolation resistance | ≥ 100 MΩ |
| Operating temperature range | –30 °C to +80 °C |
| Weight | ≈ 25 g |
The relay accepts an input voltage of DC 3 V to 28 V.
It can switch AC load voltages from 75 V up to 264 V.
The isolation resistance is specified as 100 MΩ or higher.
The device can operate from –30 °C to +80 °C.
