This document describes the common precautions and features of the S3G/S3G D B-342 and S3G/S3G D B-343 products. These products comply with RoHS standards and have a minimum packaging unit of 100 pieces. They have non-repetitive surge current withstand and provide multiple input voltage specifications. In addition, the document also provides detailed information on the weight, turn-on current, and turn-on time of the products.

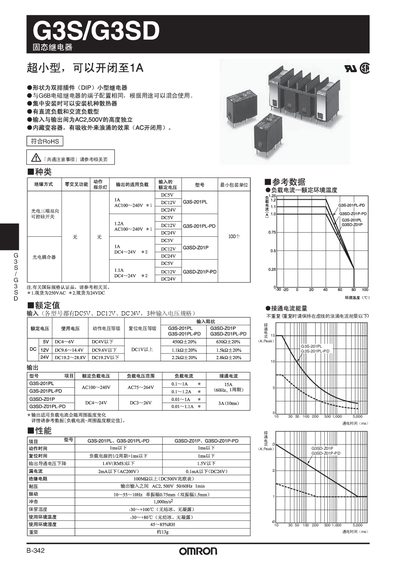

This manual describes the Omron G3S/G3SD solid‑state relays, including their compact DIP package, rated load current of up to 1 A, and isolation voltage of 2.5 kV AC. It lists the available input voltage options (DC5 V, DC12 V, DC24 V) and the output voltage ranges for both AC and DC versions.
Installation notes cover proper mounting, heat‑sink attachment, and wiring connections, while the common precautions section warns about correct usage, surge protection, and environmental limits such as operating temperature from –30 °C to +80 °C. This manual is written in Chinese.
| Input Voltage Options | DC5 V, DC12 V, DC24 V |
|---|---|
| Output Voltage (DC version) | DC4~24 V |
| Isolation Voltage | 2.5 kV AC |
| Operating Temperature Range | -30 °C to +80 °C |
| Storage Temperature Range | -30 °C to +100 °C |
| Insulation Resistance | ≥100 MΩ |
| Leakage Current | ≤2 mA |
| Weight | ≈13 g |
They accept DC5 V, DC12 V, or DC24 V input voltages.
The isolation voltage is 2.5 kV AC.
They operate from –30 °C up to +80 °C.
