G3VM-351H MOS FET relay is a thin, flat, small-sized package MOS FET relay with a height of 2.1 mm. It is updated from the G3VM-S3 series with a continuous load current of 110mA and an input-output insulation voltage of 1500Vrms.
The G3VM-351H is a compact MOS FET relay with a 2 mm thin profile, designed for use with infrared LEDs in optically coupled applications. It offers a continuous load current of 110 mA and an input‑output voltage rating of 1500 Vrms.

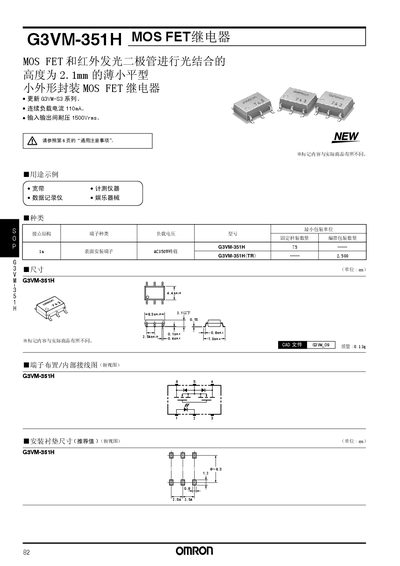

This manual includes electrical performance data, maximum ratings, recommended operating conditions, terminal layout diagrams, and mounting pad dimensions. It also outlines general precautions and provides guidance for proper installation and reliable operation of the relay. This manual is written in Chinese.
| Continuous load current | 110 mA |
|---|---|
| Input‑output voltage rating | 1500 Vrms |
| LED forward voltage (10 mA) | 1.0 – 1.3 V |
| LED forward current | 1.0 – 3 mA |
| Maximum on‑resistance | 35 – 50 Ω |
| Off‑state leakage current | 1.0 µA |
| Terminal capacitance | 30 pF |
| Input‑output capacitance | 0.8 pF |
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -55 °C to +125 °C |
| Soldering temperature | 260 °C for 10 s |
| Action time | 0.3 – 1.0 ms |
| Release time | 0.1 – 1.0 ms |
The relay can handle a continuous load current of 110 mA.
The input‑output voltage rating is 1500 Vrms.
The relay is rated for operation from –40 °C to +85 °C.
