The document describes a 600V MOS FET that can be used to drive LED lights with a maximum current of 90mA.

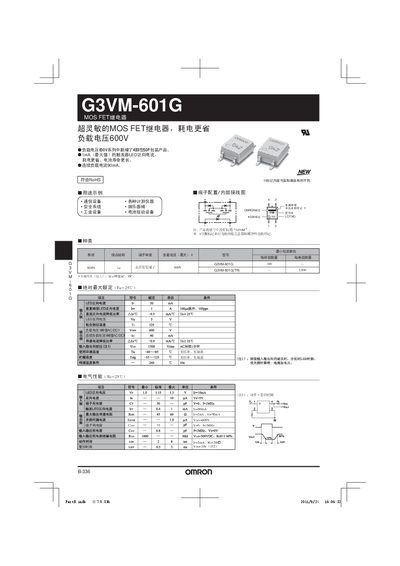

The G3VM-601G is a MOS FET solid‑state relay designed for low‑power applications. It offers a maximum load voltage of 600 V and a continuous load current of 90 mA, with a highly sensitive trigger LED that draws only 1 mA.
The document lists electrical characteristics, recommended operating conditions, and reference data such as LED forward current and voltage limits. It also includes wiring diagrams and notes on environmental limits for reliable operation. This manual is written in Chinese.
| Maximum load voltage | 600 V |
|---|---|
| Continuous load current | 90 mA |
| Trigger LED forward current (max) | 1 mA |
The relay can handle a maximum load voltage of 600 V.
It is rated for a continuous load current of 90 mA.
The trigger LED should be driven with a forward current not exceeding 1 mA.
