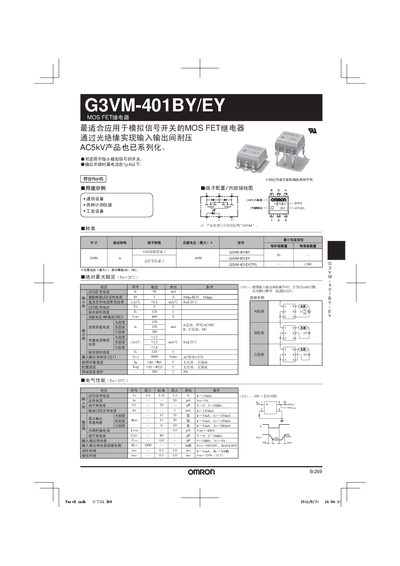

This document is the characteristics parameter table of G3VM-401BY/EY MOS FET, mainly including characteristics parameters, pin definition, package form and other information
The G3VM-401BY/EY is an Omron MOS FET relay designed for switching small analog signals with high isolation between input and output. It features a low leakage current and can be driven by an LED.
The document lists key specifications such as load voltage, continuous load current, LED drive requirements, isolation voltage, and operating temperature range, and includes recommended conditions for reliable operation. This manual is written in Chinese.
| Load voltage (peak AC/DC) | 320 V |
|---|---|
| Continuous load current (peak AC/DC) | 120 mA |
| LED forward current | 25 mA |
| Input‑output isolation voltage | 5000 Vrms |
| Operating temperature range | 20 °C – 65 °C |
The relay is specified to operate between 20 °C and 65 °C.
The maximum load voltage (peak AC/DC) is 320 V.
The input‑output isolation voltage is rated at 5000 Vrms.
