This document describes the features and characteristics of OMRON's G3VM series relays, including terminal types, operating voltage, current, voltage withstand, operating time, reset time, etc.

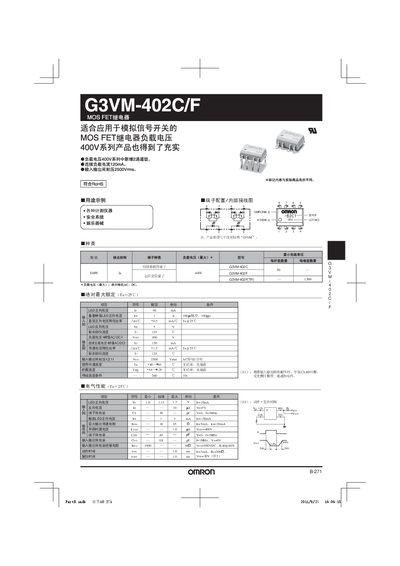

The manual describes the G3VM-402C/F MOS‑FET relay, intended for switching analog signals. It lists electrical ratings, LED indicators, and safety notes for proper installation and use.
Key specifications such as load voltage, load current, input‑output voltage, and timing parameters are given, along with recommended operating conditions to ensure reliable performance. This manual is written in Chinese.
| Maximum load voltage | 400 V |
|---|---|
| Maximum continuous load current | 120 mA |
| Input‑output voltage rating | 2500 Vrms |
| LED forward current | 50 mA |
The relay is rated for a maximum load voltage of 400 V.
The maximum continuous load current is 120 mA.
The input‑output voltage rating is 2500 Vrms.
The LED forward current is specified as 50 mA.
