G3VM-354J is a 2b dual relay with a maximum voltage rating of 350V and a maximum output current of 120mA. It can be used in 1500Vrms AC and DC circuits.

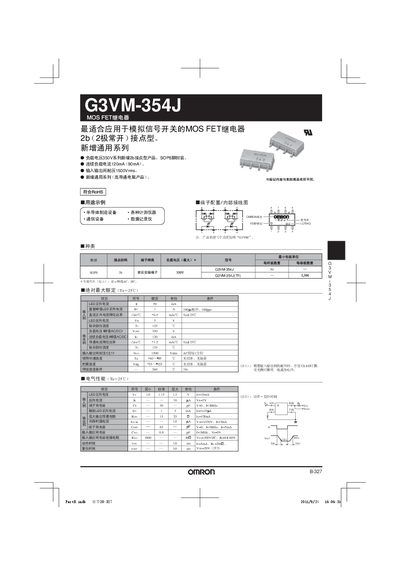

This manual describes the G3VM-354J MOS FET relay, its electrical characteristics, and how to correctly connect and use the device. It includes diagrams of terminal configurations and notes on RoHS compliance.
Key specifications such as load voltage, continuous load current, isolation voltage, and LED drive requirements are listed, along with recommended temperature ranges and reset conditions to ensure reliable operation. This manual is written in Chinese.
| Maximum load voltage (peak AC/DC) | 280 V |
|---|---|
| Continuous load current | 120 mA (90 mA) |
| Input‑output isolation voltage | 1500 Vrms |
| LED forward current | 50 mA |
| LED forward voltage | 10 V |
The maximum continuous load current is 120 mA (90 mA).
The isolation voltage between input and output is rated at 1500 Vrms.
A forward LED current of 50 mA is required.
