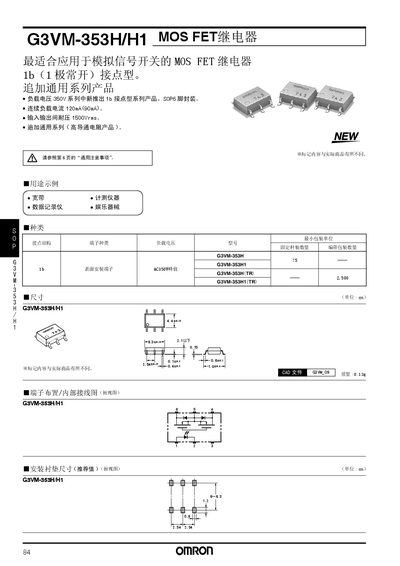

G3VM-353H/H1 is a 1b (1 pole normally open) contact type MOS FET relay. The load voltage 350V series has launched a new 1b contact type series product, SOP6 pin package. Continuous load current 120mA (90mA). Input and output withstand voltage 1500Vrms.
This manual describes the G3VM-353H/H1 MOS FET relay, a surface‑mount relay designed for switching analog signals. It includes general precautions, electrical performance data, and recommended operating conditions.
Key sections cover load voltage limits, continuous load current, input‑output breakdown voltage, temperature ranges, and timing specifications, along with mechanical dimensions and CAD file references for PCB design. This manual is written in Chinese.
| Continuous load current | 120 mA (90 mA) |
|---|---|
| Input‑output breakdown voltage | 1500 Vrms |
It is rated for a continuous load current of 120 mA (90 mA typical).
The breakdown voltage between input and output is 1500 Vrms.
