G3VM-401A/D is a MOS FET produced by OMRON. It has a rated voltage of 400V and a maximum current of 120mA. It can be applied to AC/DC LED driving.

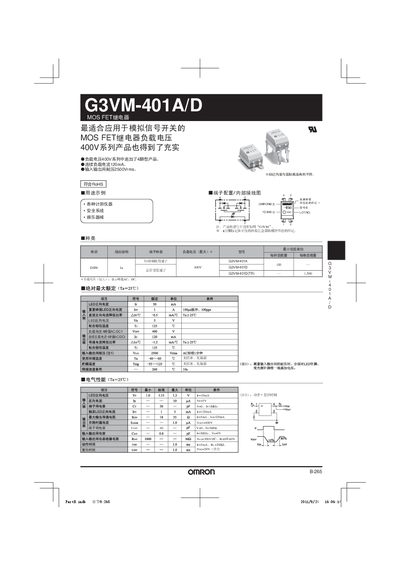

This manual describes the G3VM-401A/D MOS FET relay, including its electrical characteristics, recommended operating conditions, and connection diagrams. It lists key parameters such as load voltage, continuous load current, isolation voltage, and LED specifications.
The document also gives safety and environmental limits, actuation and release times, and guidance for correct installation and usage in various applications. This manual is written in Chinese.
| Load voltage (peak AC/DC) | 320 V |
|---|---|
| Continuous load current | 100 mA |
| Isolation voltage (input‑output) | 2500 Vrms |
| LED forward voltage | 1.9 V |
| LED forward current | 5 mA |
| Actuation time | 10 ms |
| Release (reset) time | 10 ms |
The relay can handle a peak AC/DC load voltage of 320 V.
The continuous load current is rated at 100 mA.
The isolation voltage between input and output is 2500 Vrms.
