This document is the specification of G3VM-355JR MOS FET, which mainly includes the product's features, parameters, performance and other information.

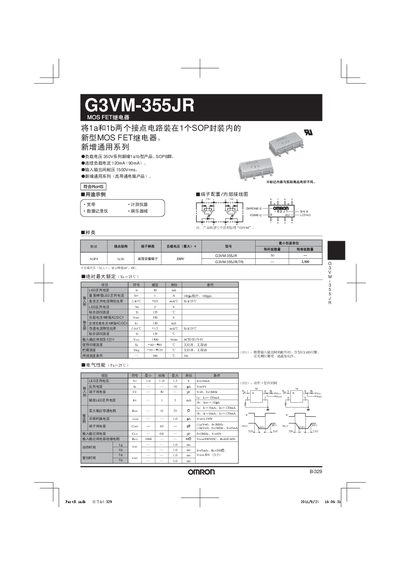

This manual describes the G3VM-355JR MOS FET relay, a compact 1a/1b contact relay packaged in an SOP8 footprint. It outlines the relay's electrical ratings, such as a maximum load voltage of 350 V and a continuous load current of 120 mA (90 mA), as well as isolation voltage and LED drive requirements.
The document includes detailed tables of electrical parameters, recommended operating conditions, and separate sections for the 1a and 1b contact sides. It also references common safety notes and provides guidance for proper installation and testing of the relay. This manual is written in Chinese.
| Maximum load voltage | 350 V |
|---|---|
| Continuous load current | 120 mA (90 mA) |
| Input‑output isolation voltage | 1500 Vrms |
| LED forward voltage | 1.15 V |
| LED forward current | 50 mA |
The relay can handle a continuous load current of 120 mA (90 mA).
The input‑output isolation voltage is rated at 1500 Vrms.
The relay is rated for a maximum load voltage of 350 V.
The LED forward current is specified as 50 mA.
