G3VM-601BY/EY MOS FET has an AC5kV surge withstand voltage, and can be used as a LED driver for AC/DC power supplies. Its main features include: low on-resistance, low gate drive voltage, low leakage current.

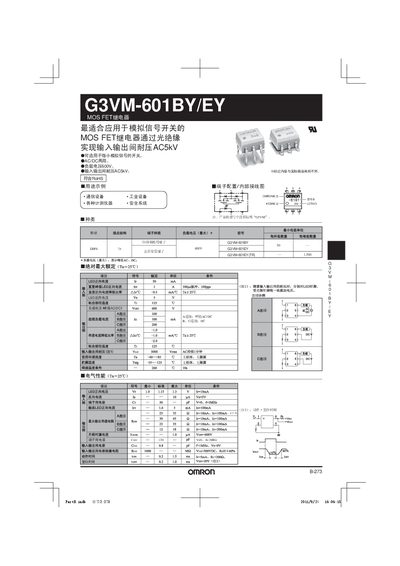

This manual describes the Omron G3VM-601BY/EY MOS‑FET solid‑state relay, its electrical characteristics, and proper usage. It includes connection diagrams, safety notes, and performance data for reliable switching of low‑level analog signals.
Key sections cover input‑output isolation voltage, load voltage limits, LED drive requirements, and recommended operating temperature ranges, helping users select and install the relay correctly. This manual is written in Chinese.
| Input‑output isolation voltage | AC 5 kV |
|---|---|
| Maximum load voltage (continuous) | 600 V |
| LED forward current (typical) | 30 mA |
The relay provides an isolation voltage of AC 5 kV between input and output.
A typical LED forward current of 30 mA is recommended.
