G3VM-353G MOS FET is a 1b1 channel N-channel MOSFET with a maximum load voltage of 350V, a maximum output current of 120mA (90mA), and a fast switching speed, suitable for use in power switching circuits and motor drive circuits.

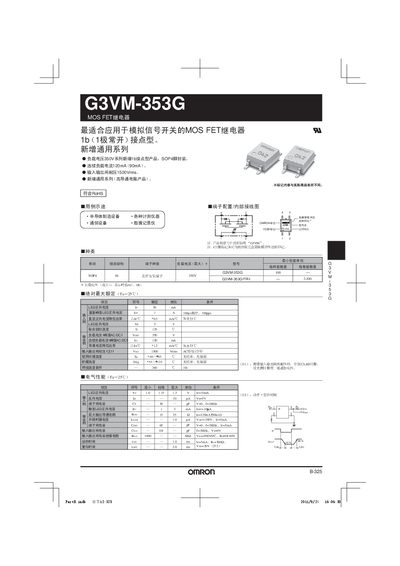

This datasheet describes the G3VM-353G MOS FET relay, a 1‑pole normally‑open (1b) contact type designed for switching analog signals. It includes the relay's electrical characteristics, maximum ratings, and recommended operating conditions.
Key information such as continuous load current, isolation voltage, LED drive requirements, switching times, and package details are listed, along with compliance notes (RoHS) and reference diagrams for proper implementation. This manual is written in Chinese.
| Continuous load current | 120 mA (typ) |
|---|---|
| Isolation voltage (input‑output) | 1500 Vrms |
| Maximum load voltage (peak AC/DC) | 350 V |
| LED forward current | 30 mA |
| Switching time | 10 ms |
| Release time | 30 ms |
| Package | SOP‑4 (surface‑mount, 4‑pin) |
| RoHS compliance | Yes |
The relay can handle a continuous load current of up to 120 mA.
The isolation voltage between input and output is rated at 1500 Vrms.
A forward current of 30 mA is specified for the drive LED.
Yes, the relay complies with RoHS requirements.
