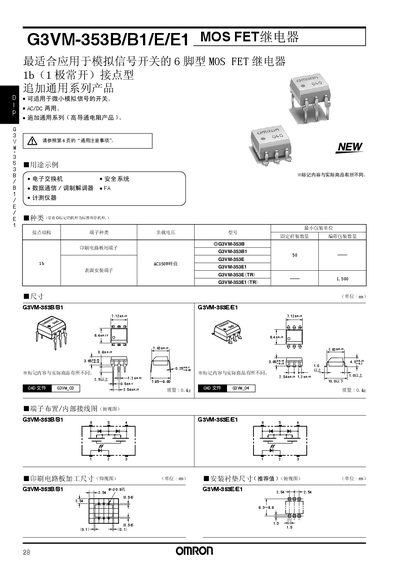

This document describes the features and characteristics of the G3VM-353B/B1/E/E1 MOS FET relay, including load voltage, terminal type, contact structure, etc. This relay is suitable for switching small analog signals and can be used in electronic switches, data communication, measurement instruments, safety systems, etc.
The G3VM-353 series is a 6‑pin MOS FET relay designed for switching low‑level analog signals. It can be used in electronic switches, data communication equipment, modems, and safety systems. The relay offers both AC and DC operation and features a single normally‑open contact.
The manual lists electrical ratings such as a 350 V output withstand voltage, 150 mA continuous load current, and a -40 °C to +85 °C operating temperature range. It also includes recommended soldering conditions, LED drive specifications, and packaging dimensions to ensure proper installation and reliable performance. This manual is written in Chinese.
| LED forward current | 50 mA |
|---|---|
| Output withstand voltage | 350 V |
| Continuous load current | 150 mA |
| Input‑output isolation voltage | 2500 V rms |
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -55 °C to +125 °C |
| Soldering temperature condition | 260 °C for 10 s |
| LED forward voltage (I=10 mA) | 1.0 V – 1.3 V |
The relay can withstand an output voltage of up to 350 V.
The relay is rated for operation between –40 °C and +85 °C.
It can carry a continuous load current of 150 mA (standard) up to 200 mA (maximum).
The LED forward current is specified as 50 mA.
