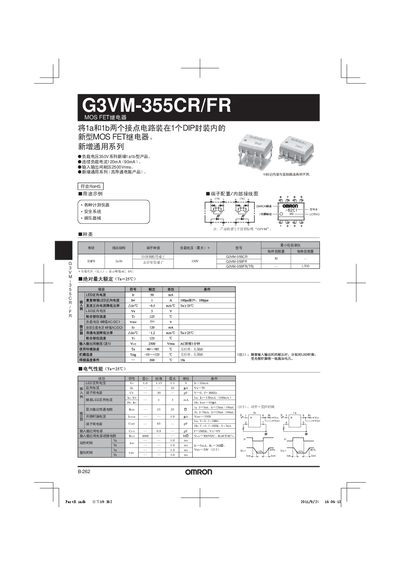

This document describes the features and characteristics of the G3VM-355CR/FR MOS FET, including voltage, current, frequency, and other parameters. The product is RoHS certified and has the characteristics of no icing and no condensation.
The Omron G3VM-355CR/FR MOS FET relay integrates two contacts (1a and 1b) in a single DIP package, offering a high load voltage rating of 350 V and a continuous load current of up to 120 mA. It provides an input‑output isolation voltage of 2500 Vrms and features LED indicators for status monitoring.
The manual includes recommended operating conditions, electrical characteristics such as forward LED current (5‑25 mA), actuation and release times (1 ms and 1.0 ms), and environmental limits. Wiring diagrams and terminal configurations are provided to aid proper installation and reliable operation. This manual is written in Chinese.
| Maximum Load Voltage | 350 V |
|---|---|
| Continuous Load Current | 120 mA (90 mA) |
| Input‑Output Isolation Voltage | 2500 Vrms |
The relay can handle a maximum load voltage of 350 V.
It is rated for a continuous load current of 120 mA (90 mA typical).
The isolation voltage is specified as 2500 Vrms.
