This datasheet is for G3VM-352J product specifications, including rated voltage, current, frequency, voltage, temperature, size, etc.

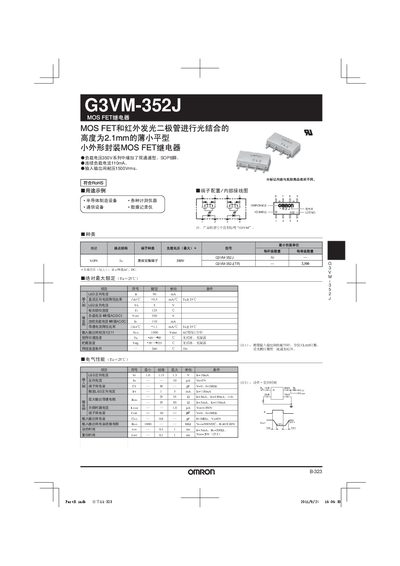

This manual describes the Omron G3VM-352J MOS FET relay, its compact SOP8 package, and the optical coupling between the MOS FET and an infrared LED. It includes safety notes, RoHS compliance, and typical application examples.
The document lists electrical characteristics such as load voltage, continuous load current, isolation voltage, LED forward and reverse parameters, as well as recommended operating conditions, timing specifications, and wiring information for proper installation and reliable operation. This manual is written in Chinese.
| Maximum load voltage (peak AC/DC) | 350 V |
|---|---|
| Continuous load current | 110 mA |
| LED forward current | 30 mA |
| LED reverse voltage | 5 V |
| Operating temperature range | -20 °C to 85 °C |
| Reset time | 1 ms |
The relay can handle a peak AC/DC load voltage of 350 V.
The continuous load current is rated at 110 mA.
