G3VM-351B/E MOS FET relay is a new relay with a load voltage of 350V, a continuous load current of 120mA, an input-output isolation voltage of 2500Vrms, and actuation time of 0.3ms

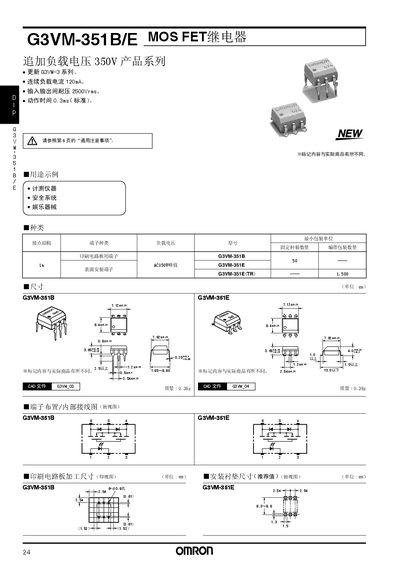

The G3VM-351B/E is an Omron MOS FET relay designed for a variety of applications such as measurement instruments, safety systems, and entertainment equipment. The document lists general notes, package dimensions, and recommended mounting details.
Key electrical parameters are presented, including maximum load voltage, continuous load current, isolation voltage, operation and release times, and LED drive specifications. Recommended operating conditions and environmental limits are also provided to ensure reliable performance. This manual is written in Chinese.
| Maximum load voltage | 350 V |
|---|---|
| Continuous load current | 120 mA |
| Input‑output isolation voltage | 2500 V rms |
| Operation time | 0.3 ms |
| Release time | 0.1 ms |
| LED forward voltage | 1.0 – 1.3 V (at 10 mA) |
| LED forward current | 1 – 3 mA |
| Off‑state leakage current | 1.0 µA |
The relay is rated for a maximum load voltage of 350 V.
The isolation voltage is specified as 2500 V rms.
