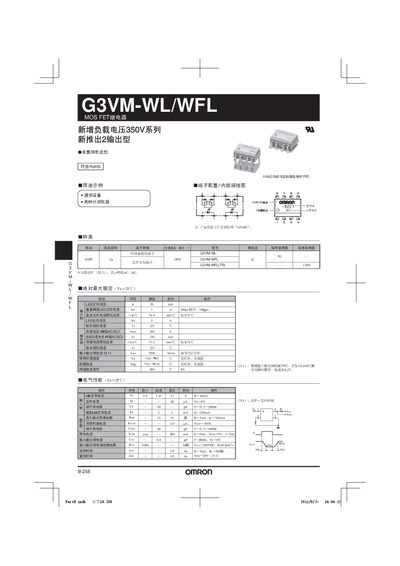

Omron G3VM-WL/WFL MOS FET Relay User Manual

The document describes the features and characteristics of the G3VM-WL/WFL MOS FET products.

Brand: Omron
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 2
File format: PDF
File size: 386 KB
Published: 16 March, 2012
Updated: 29 September, 2023
MD5 checksum: 6C04F3B6AB6275E6C7D5C690636B567D
PDF: Omron G3VM-WL/WFL MOS FET Relay User Manual PDF

About this manual

This manual provides the specifications, wiring diagram and recommended operating conditions for the Omron G3VM-WL/WFL MOS FET relay. It includes details on load voltage limits, LED indicators, and temperature ranges to ensure reliable performance.

The document also contains reference data, general precautions and part numbers for proper installation and maintenance of the relay in various communication and measurement equipment. This manual is written in Chinese.

What's inside

Terminal Configuration and Wiring Diagram
Recommended Operating Conditions
Reference Data
General Precautions
Technical Specifications

Specifications

Trigger LED Forward Current	1.3 mA
Output On‑Resistance (Ron)	22 Ω
Operating Temperature Range	20 °C – 65 °C
LED Forward Voltage	1.15 V

Frequently asked questions

What is the recommended operating temperature range for the G3VM‑WL/WFL relay?

The relay is rated for operation between 20 °C and 65 °C.

What is the trigger LED forward current specification?

The trigger LED forward current is specified as 1.3 mA.

What is the on‑resistance of the relay when it is conducting?

The output on‑resistance (Ron) is 22 Ω.
