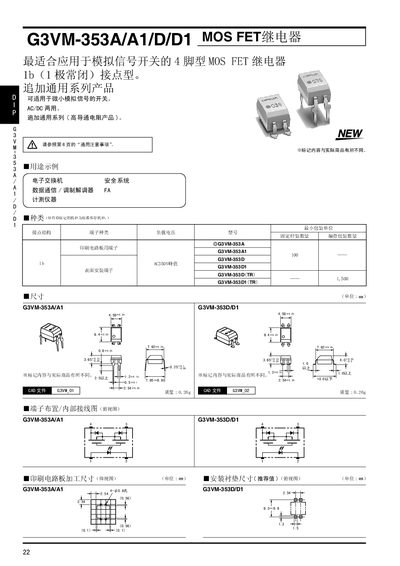

This document is the specification of G3VM-353A/A1/D/D1 MOS FET
The G3VM-353 series is a four‑pin MOS FET relay designed for switching very small analog signals. It is offered in four variants (A, A1, D, D1) and can be used in AC or DC applications.
The datasheet lists key electrical ratings such as LED forward current, output withstand voltage, and continuous load current, as well as mechanical dimensions, packaging details, and recommended operating temperature ranges to ensure reliable performance. This manual is written in Chinese.
| LED forward current (IF) | 50 mA |
|---|---|
| Output withstand voltage (VoFF) | 350 V |
| Continuous load current (To) | 150 mA |
| Operating temperature range (Ta) | -40 °C to +85 °C |
| Storage temperature range (Tste) | -55 °C to +125 °C |
The relay can withstand up to 350 V across its output contacts.
The relay is rated for operation from –40 °C to +85 °C.
The continuous load current is specified as 150 mA.
The LED forward current is rated at 50 mA.
