This is a datasheet for G3VM-21GR1, which introduces the product characteristics, such as maximum current, voltage, frequency, etc.

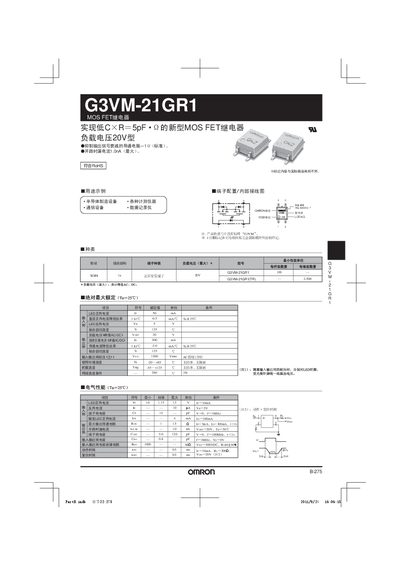

This manual describes the G3VM-21GR1 MOS FET relay, its electrical characteristics, pin layout, and internal wiring. It includes tables of ratings, environmental limits, and typical application examples for semiconductor manufacturing equipment and measurement instruments.
The document also gives recommended operating conditions, such as load voltage limits, leakage current, and temperature range, together with safety notes and handling instructions for reliable relay performance. This manual is written in Chinese.
| Rated load voltage (peak AC/DC) | 20 V |
|---|---|
| LED forward voltage | 1.15 V |
| Input‑output isolation voltage | 1500 Vrms (1 min) |
| Off‑state leakage current | 1.0 nA |
The relay can handle a peak load voltage of 20 V (AC or DC).
The leakage current in the off state is specified as 1.0 nA.
The isolation voltage is rated at 1500 Vrms for up to one minute.
