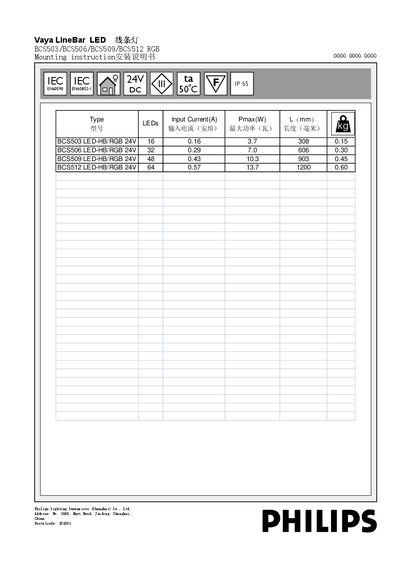

This document is an installation instruction for Vaya LineBar LED. It introduces the product's model, size, current, power, etc. parameters, as well as installation methods and precautions.
This guide provides step‑by‑step mounting instructions for the Philips BCS series RGB line bar LEDs, including mechanical mounting, screw specifications, and recommended placement. It also details the wiring connections for power, data (RS‑485/DMX512), and controller interfaces.
The document lists electrical parameters for each model, cable types, maximum cable run lengths, and safety notes such as avoiding connection of the data connector to the power input. System configuration information for DMX controllers and repeaters is also included.
| BCS503 Input Current (A) | 0.16 |
|---|---|
| BCS506 Input Current (A) | 0.29 |
| BCS509 Input Current (A) | 0.43 |
| BCS512 Input Current (A) | 0.57 |
| Maximum Data Cable Run | 50 m |
| Power Output Voltage | 240 V |
The device will be damaged.
A single data cable run can be up to 50 meters.
The power output provides 240 V.
