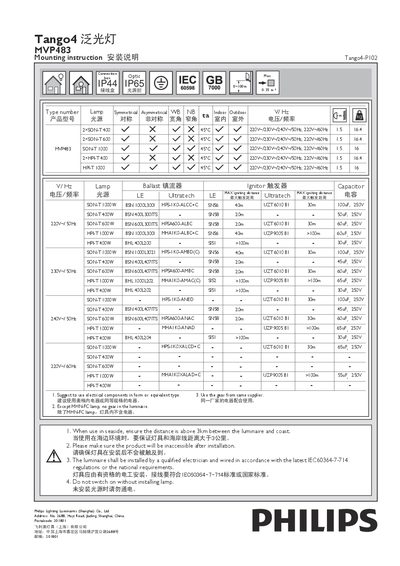

This manual introduces the characteristics, technical parameters and installation instructions of Philips Tango4 floodlight MVP483
This manual provides step‑by‑step instructions for installing the Philips MVP483 floodlight (Tango4 series). It includes mounting procedures, wiring diagrams for SON‑T and HPI‑T lamps, and required safety precautions such as power shutdown and qualified electrician installation.
Key specifications such as voltage range, power options, allowed installation angle, IP rating, and maximum igniting distance are listed, along with torque values for mounting bolts and guidelines for indoor and outdoor use. This manual is written in Chinese.
| Voltage / Frequency | 220‑240 V, 50 Hz (also 60 Hz) |
|---|---|
| Power options (lamp) | 400 W, 600 W, 1000 W (SON‑T / HPI‑T) |
| Maximum igniting distance | 16.4 m – 20.35 m |
| Ingress protection (IP rating) | IP44, IP65 |
| Allowed installation angle | 0° – 150° |
| Mounting bolt torque | M10 bolt 50 N·m |
The MVP483 operates on 220‑240 V at 50 Hz (and also 60 Hz).
The allowed installation angle ranges from 0° to 150°.
