Philips TTX/TMX285 Mounting instruction, introduce product's type, voltage, frequency, lamp, ballast, housing material, diffuser material, length etc.

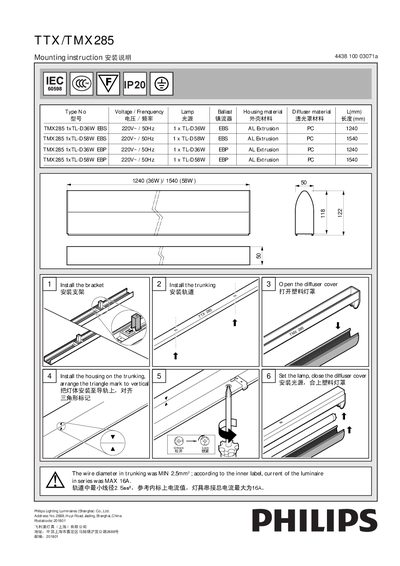

The manual guides the installer through mounting the bracket, opening the diffuser cover, installing the housing on the trunking, and setting the lamp before closing the diffuser cover. It also specifies the correct orientation of the triangle mark and the required wiring dimensions.
Electrical requirements include a 220 V~ / 50 Hz supply, a maximum series current of 16 A, and a minimum trunking wire diameter of 2.5 mm. Lamp options are 26 W (1240 mm) or 58 W (1540 mm) depending on the diffuser size.
| Supply Voltage / Frequency | 220 V~ / 50 Hz |
|---|---|
| Lamp Power (1240 mm) | 26 W |
| Lamp Power (1540 mm) | 58 W |
| Maximum Series Current | 16 A |
| Minimum Wire Diameter in Trunking | 2.5 mm |
It operates on a 220 V~ supply at 50 Hz.
The maximum series current is 16 A.
The wire diameter in the trunking must be at least 2.5 mm.
Two lamp powers are offered: 26 W for the 1240 mm diffuser and 58 W for the 1540 mm diffuser.
