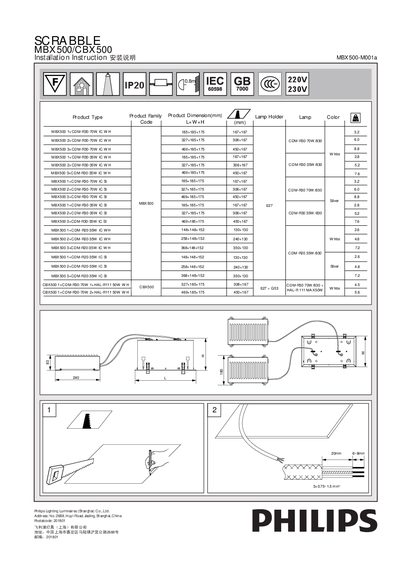

Philips MBX500/CBX500 Light Fixtures Installation Guide

This document is an installation instruction for Philips SCRABBLE product, which mainly introduces the use and installation methods of the product

Brand: Philips
Category: Other
Document type: Installation Guide
Language: English
Pages: 2
File format: PDF
File size: 763 KB
Published: 12 March, 2012
Updated: 30 September, 2023
Model: X500
MD5 checksum: 47206A36FE7D8AB7DFFDDF70387B2E8D
PDF: Philips MBX500/CBX500 Light Fixtures Installation Guide PDF

About this manual

This document provides the installation instructions for Philips MBX500 and CBX500 luminaires. It lists the available lamp types, dimensions, and required accessories such as installation clips.

The guide specifies that a qualified electrician must perform the wiring, warns against covering the luminaire with thermal insulation, and states that the fixtures must not be used with dimming devices or electronic switches. Installation clips must be purchased separately.

What's inside

Installation Instructions
Product Specifications
Mounting Options
Electrical Wiring
Safety Precautions
Lamp Options

Specifications

Dimensions (W × H × D)	167 × 167 mm
Lamp Power	70 W

Frequently asked questions

Can the luminaire be used with a dimming device?

No, the luminaire must not be used together with a dimming device, electronic switch, or remote control.

Who should install the luminaire?

The luminaire shall be installed by a qualified electrician.

Are installation clips included with the product?

Installation clips need to be purchased separately.
