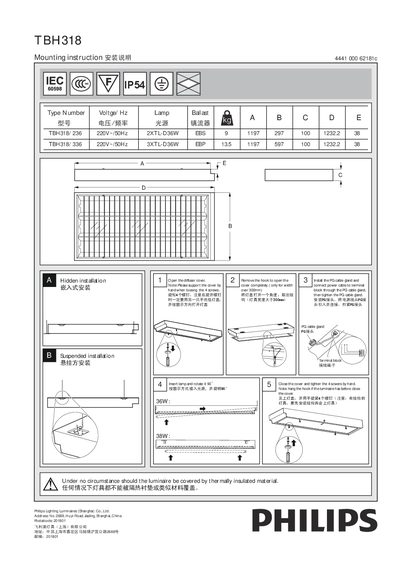

This document is the installation instruction for Philips TBH318 luminaire, which details the hidden installation and suspended installation methods. It also provides the luminaire's type, voltage/frequency, lamp, ballast and other information.
The manual provides step‑by‑step mounting instructions for the TBH318 luminaire. Hidden installation steps include opening the diffuser cover, removing the hook, installing the PG cable gland, connecting the power cable, inserting the lamp, rotating it 90°, and securing the cover with the screws.
Suspended installation is also described, with similar steps for inserting the lamp, rotating it, and tightening the screws. The document emphasizes that the luminaire must never be covered with thermally insulated material and includes the manufacturer's address for reference.
| Voltage | 220V~ |
|---|---|
| Frequency | 50Hz |
| Lamp type (TBH318/236) | TL‑D36W |
| Number of lamps (TBH318/236) | 2 |
| Lamp type (TBH318/336) | TL‑D36W |
| Number of lamps (TBH318/336) | 3 |
| Power (TBH318/336) | 13.5 W |
