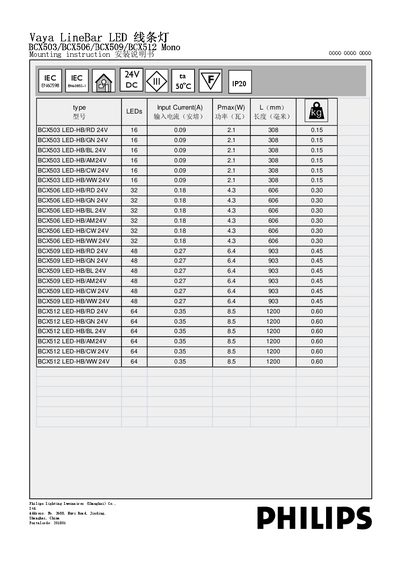

This instruction manual introduces the features and characteristics of the BCX503-BCX512 series products, including input current, power, length, etc.
This manual provides step‑by‑step mounting instructions for the Philips BCX5xx series mono LED luminaires. It includes the required mounting hardware, recommended IP20‑grade connection boxes, and compliance with IEC 60598 standards.
The guide also details the power supply requirements (24 V DC), cable colour coding, and limits on cable replacement. Safety notes explain that the external flexible cable cannot be replaced and must be destroyed if damaged.
| Input voltage | 24 V DC |
|---|---|
| BCX503 input current | 0.09 A |
| BCX506 input current | 0.18 A |
| BCX509 input current | 0.27 A |
| BCX512 input current | 0.35 A |
The luminaire requires a 24 V DC input voltage.
No, the external flexible cable cannot be replaced; the luminaire must be destroyed if the cable is damaged.
Brown is +24 V, blue is ground, black is for data use, and yellow‑green must not be used.
