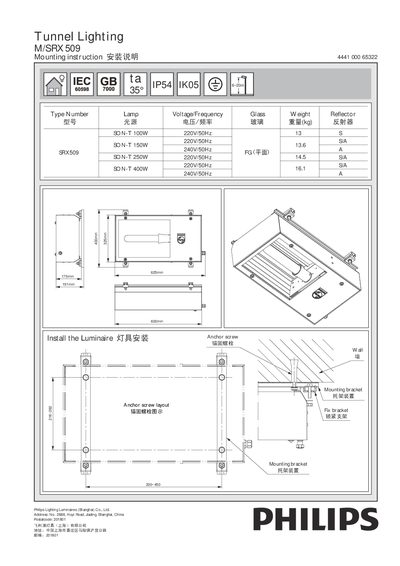

This document provides installation instructions and features of the Tunnel Lighting M/SRX509 luminaire produced by Philips Lighting (Shanghai) Co., Ltd.
This manual provides step‑by‑step instructions for installing the Philips M/SRX509 tunnel lighting luminaire. It includes mounting bracket details, anchor screw layout, and torque specifications for secure installation.
The guide also describes how to open the glass cover, replace the lamp, and connect the entry cable, ensuring proper operation of the tunnel lighting system. This manual is written in Chinese.
| Lamp power | 100W |
|---|---|
| Torque | 0.4‑0.65 Nm |
The torque should be set between 0.4 and 0.65 Nm.
Open the glass cover and replace the lamp.
