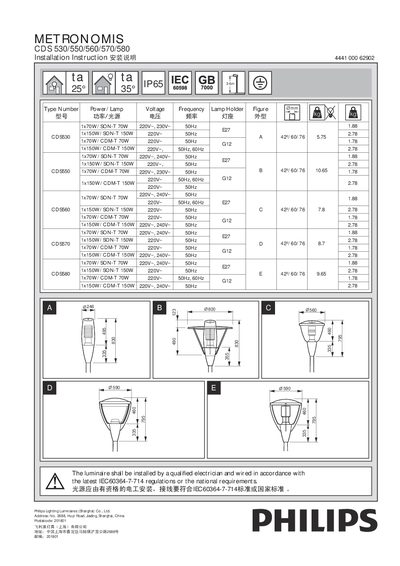

Philips CDS 530/550/560/570/580 Installation Guide

This manual introduces the installation method of CDS 530/550/560/570/580 METRONOMIS products.

Brand: Philips
Category: lighting
Document type: Installation Guide
Language: English
Pages: 3
File format: PDF
File size: 834 KB
Published: 12 March, 2012
Updated: 30 September, 2023
MD5 checksum: 8BB6596B91BD3B2C584158CAD747EEEE
PDF: Philips CDS 530/550/560/570/580 Installation Guide PDF

About this manual

This installation guide provides the necessary instructions for fitting the Philips CDS 530/550/560/570/580 series luminaires. It lists the compatible lamp types, voltage ranges, and IP65 protection rating, and references the IEC60364-7-714 regulations for electrical safety.

The luminaire must be installed by a qualified electrician, with wiring performed according to local codes and the cited IEC standard. Detailed tables show lamp power options (70 W or 150 W) and the required E27 lamp holder.

What's inside

Safety Information
Technical Data
Installation Instructions

Specifications

Operating voltage	220‑240 V AC, 50 Hz
Lamp power options	70 W or 150 W
Compatible lamp types	SON‑T 70 W, SON‑T 150 W, CDM‑T 70 W, CDM‑T 150 W

Frequently asked questions

Who should install the Philips CDS luminaire?

The luminaire shall be installed by a qualified electrician.

Which standard must the installation comply with?

Installation must follow the latest IEC60364-7-714 regulations.

What lamp types are compatible with the CDS series?

The series supports 70 W or 150 W SON‑T and CDM‑T lamps with an E27 base.
