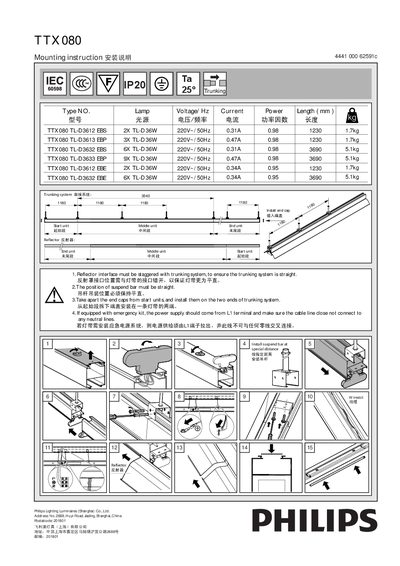

This document is the installation instruction of Philips TTX080 series trunking lighting, which describes the installation method, power connection method and product specifications.
This guide provides step‑by‑step mounting instructions for the Philips TTX080 trunking system, covering reflector alignment, suspend‑bar placement, and end‑cap installation. It also includes safety notes for connecting the emergency‑kit power supply.
Technical data such as lamp voltage, current, power, length and weight are listed for each TTX080 variant, helping installers verify compatibility and plan the installation layout.
| Lamp Voltage | 220V |
|---|---|
| Frequency | 50Hz |
The reflector interface must be staggered with the trunking system to ensure the trunking system is straight.
The power supply should be taken from the L1 terminal and must not be connected to any neutral lines.
