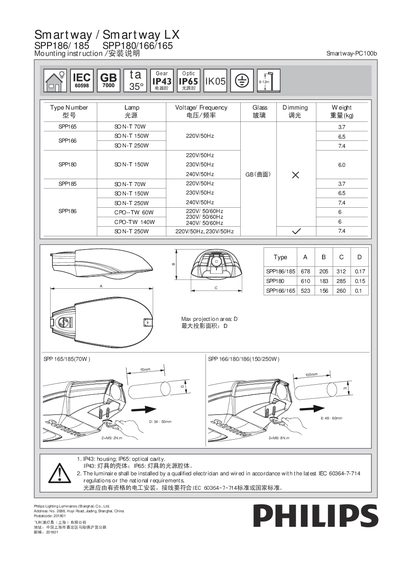

This document is the installation manual for Philips luminaire SPW186/185 SPP180/166/165, which introduces the product's model, voltage, frequency, weight and other features.
This manual provides step‑by‑step mounting instructions for the Philips Smartway series (SPP186, SPP185, SPP180, SPP166, SPP165). It includes lamp type, voltage, frequency, and weight data, as well as maximum projection area and housing dimensions.
Safety guidelines require that a qualified electrician perform the installation and wiring in accordance with IEC 60364‑7‑714 or applicable national regulations. The power supply must be disconnected before any lamp replacement, and the housing is rated IP65 for protection against dust and water.
| SPP165 Lamp | 70 W, 220 V, 50 Hz, 3.7 kg |
|---|---|
| SPP180 Lamp | 150 W, 230 V, 50 Hz, 6.5 kg |
| SPP185 Lamp | 70 W, 220 V, 50 Hz, 3.7 kg |
| Housing IP Rating | IP65 |
| Maximum Projection Area | D |
| Gear Tray Installation (150 W/250 W) | Gear tray install required |
| Torque Specification | 2 × M8, 8 Nm |
The power supply must be disconnected before changing the lamp.
The housing has an IP65 rating.
The SPP180 uses a 150 W lamp at 230 V, 50 Hz.
