This document provides detailed instructions on the installation, use, maintenance, etc. of the MR-E series servo amplifiers and servo motors, including precautions, environmental conditions, power supply, system, protection functions, speed control range, speed control mode, torque control mode, structure, operating temperature, etc.

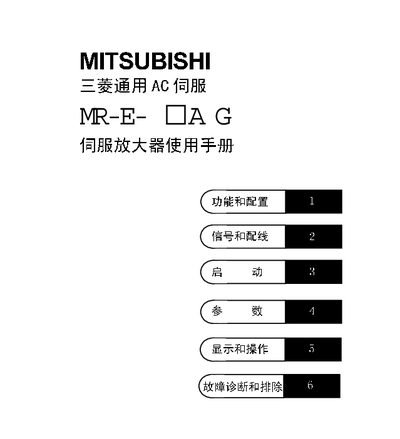

This manual covers the safe handling, installation requirements, and environmental conditions for Mitsubishi MR‑E‑AG servo amplifiers and motors. It specifies operating and storage temperature ranges, humidity limits, altitude and vibration restrictions, and provides detailed wiring diagrams and signal definitions.
The document also describes the various control modes (speed, torque, position), signal functions, parameter settings, and a comprehensive troubleshooting guide with alarm codes and recommended corrective actions. This manual is written in Chinese.
| Operating temperature (servo amplifier) | 0 °C ~ +55 °C (non‑freezing) |
|---|---|
| Storage temperature (servo amplifier) | -20 °C ~ +65 °C (non‑freezing) |
| Power supply (three‑phase) | 200 V ~ 230 V, 50 ~ 60 Hz |
| Allowed voltage fluctuation (three‑phase) | 170 V ~ 253 V |
| Maximum altitude | up to 1000 m above sea level |
The amplifier may operate from 0 °C to +55 °C (non‑freezing).
The system is approved for use up to 1000 m above sea level.
