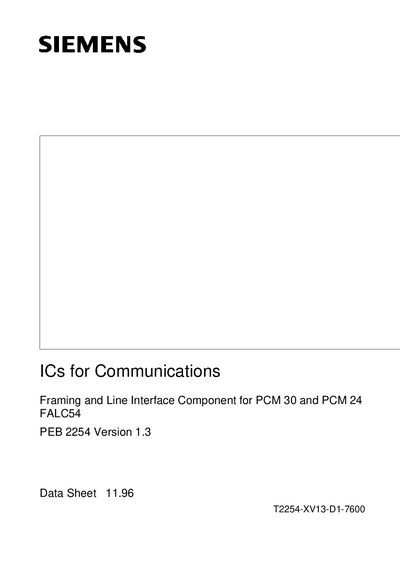

This data sheet provides information on the FALC54 PEB 2254 component, including its model, package, pins, pin functions, package dimensions, logical functions, electrical characteristics, supply voltage, package type, power consumption, operating temperature, and applications.
This document provides an overview of the FALC54 framing and line interface component used in PCM 30 and PCM 24 systems. It includes general features, pin configuration, functional block diagrams, and system integration details.
Technical sections cover the microprocessor interface, operational description, detailed register definitions, electrical specifications, and package outlines. The data sheet also lists ordering information, power consumption, and supported bus interfaces.
| Package Type | P-MQFP-80-1 (SMD) |
|---|---|
| Typical Power Consumption | 450 mW |
| System Clock Frequency | 8192 kHz |
| Bus Interface | 8/16‑bit Intel or Motorola |
It uses a P‑MQFP‑80‑1 surface‑mounted package.
The device supports 8‑bit or 16‑bit Intel and Motorola bus interfaces.
