M54HC02 M74HC02 is a high performance CMOS four-input NOR gate with a working voltage range of 2V to 6V, low power consumption, high noise immunity and stable output.

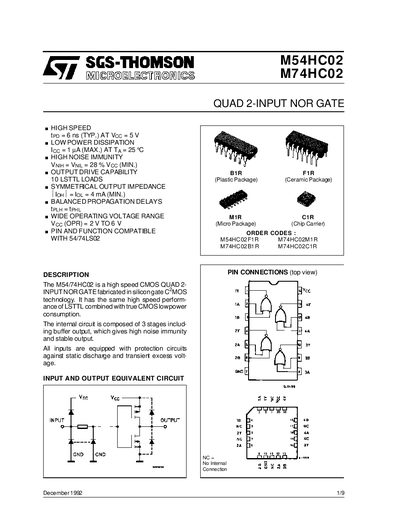

The SGS‑THOMSON M54HC02 and M74HC02 are high‑speed CMOS quad 2‑input NOR gates with low power consumption and high noise immunity. The device features symmetrical output impedance, balanced propagation delays, and is compatible with standard 54/74LS02 pin‑out.
The document provides absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, as well as detailed mechanical dimensions for plastic, ceramic, SO‑14 and PLCC‑20 packages.
| Supply Voltage (VCC) | -0.5 to +7 V |
|---|---|
| Input Voltage Range | -0.5 to VCC + 0.5 V |
| Power Dissipation | 500 mW (typ.) |
| Storage Temperature | -65 to +150 °C |
| Operating Temperature (M54HC Series) | -55 to +125 °C |
The device can be powered from –0.5 V up to +7 V.
The typical maximum power dissipation is 500 mW.
The M54HC series is specified for –55 °C to +125 °C.
